- 規格型號：96291425
- 頻率：38.4MHz
- 尺寸：2016mm
- 產品描述：ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，ABM11-38.400MHZ-D2X-T3晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度...
ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振
.jpg)
ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，ABM11-38.400MHZ-D2X-T3晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，2016晶振，四腳晶振，貼片晶振。適用于RoHS回流配置文件，在-10至+60ºC范圍內提供±10ppm的緊密穩定性，Seam密封陶瓷封裝確保高精度和可靠性，藍牙，無線應用，計算機，調制解調器，微處理器，通信，測試設備•便攜式收音機和MP3播放器

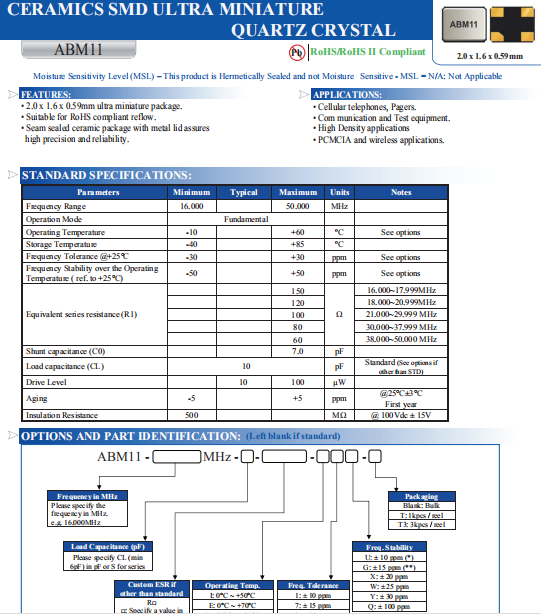

| 參數 | Minimum | Typical | Maximum | Units | Notes |
| 頻率范圍 | 16 | 50 | MHz | ||
| 工作模式 | Fundamental | ||||
| 工作溫度 | - 10 | 60 | ºC | See options | |
| 儲存溫度 | -40 | 85 | ºC | ||
| 頻率容差 | -30 | 30 | ppm | See options | |
| 頻率穩定度 | -50 | 50 | ppm | See options | |
| 分流電容 | 7 | pF | |||
| 負載電容 | 10 | pF | Standard (See options ifother than STD) | ||
| 驅動電平 | 10 | 100 | µW | ||
| 老化 | -5 | 5 | ppm | @25°C±3°C First year | |
| 絕緣電阻 | 500 | M? | @ 100Vdc ± 15V |
ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM11-140-26.000MHZ-T3 | Abracon | ABM11 | 26 MHz | ±10ppm | ±10ppm | 8 pF |
| ABM11-141-26.000MHZ-T3 | Abracon | ABM11 | 26 MHz | ±30ppm | ±10ppm | 8 pF |
| ABM11-142-27.120MHZ-T3 | Abracon | ABM11 | 27.12 MHz | ±10ppm | ±10ppm | 8 pF |
| ABM11-143-27.120MHZ-T3 | Abracon | ABM11 | 27.12 MHz | ±30ppm | ±10ppm | 8 pF |
| ABM11-16.000MHZ-12-B1U-T | Abracon | ABM11 | 16 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM11-16.000MHZ-12-N1G-T | Abracon | ABM11 | 16 MHz | ±15ppm | ±10ppm | 12 pF |
| ABM11-16.000MHZ-9-B1U-T | Abracon | ABM11 | 16 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-16.000MHZ-B1U-T | Abracon | ABM11 | 16 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-16.000MHZ-B7G-T | Abracon | ABM11 | 16 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-16.000MHZ-D2X-T | Abracon | ABM11 | 16 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-16.000MHZ-D2X-T3 | Abracon | ABM11 | 16 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-20.000MHZ-B7G-T | Abracon | ABM11 | 20 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-20.000MHZ-D2X-T3 | Abracon | ABM11 | 20 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-24.000MHZ-12-B1U-T | Abracon | ABM11 | 24 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM11-24.000MHZ-12-B1U-T3 | Abracon | ABM11 | 24 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM11-24.000MHZ-12-N1G-T | Abracon | ABM11 | 24 MHz | ±15ppm | ±10ppm | 12 pF |
| ABM11-24.000MHZ-18-BY-T3 | Abracon | ABM11 | 24 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM11-24.000MHZ-9-B1U-T | Abracon | ABM11 | 24 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-24.000MHZ-9-B1U-T3 | Abracon | ABM11 | 24 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-24.000MHZ-B1U-T | Abracon | ABM11 | 24 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-24.000MHZ-B1U-T3 | Abracon | ABM11 | 24 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-24.000MHZ-B7G-T | Abracon | ABM11 | 24 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-24.000MHZ-D2X-T3 | Abracon | ABM11 | 24 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-24.000MHZ-D7X-T3 | Abracon | ABM11 | 24 MHz | ±20ppm | ±15ppm | 10 pF |
| ABM11-25.000MHZ-16-R150-D-T | Abracon | ABM11 | 25 MHz | ±50ppm | ±30ppm | 16 pF |
| ABM11-25.000MHZ-18-B2Y-T | Abracon | ABM11 | 25 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM11-25.000MHZ-B7G-T | Abracon | ABM11 | 25 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-25.000MHZ-D2X-T3 | Abracon | ABM11 | 25 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-25.000MHZ-D7X-T | Abracon | ABM11 | 25 MHz | ±20ppm | ±15ppm | 10 pF |
| ABM11-25.000MHZ-D7X-T3 | Abracon | ABM11 | 25 MHz | ±20ppm | ±15ppm | 10 pF |
| ABM11-26.000MHZ-18-BY-T3 | Abracon | ABM11 | 26 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM11-26.000MHZ-B1U-T | Abracon | ABM11 | 26 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-26.000MHZ-B7G-T | Abracon | ABM11 | 26 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-26.000MHZ-D2X-T3 | Abracon | ABM11 | 26 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-26.000MHZ-D7X-T | Abracon | ABM11 | 26 MHz | ±20ppm | ±15ppm | 10 pF |
| ABM11-27.000MHZ-B1U-T | Abracon | ABM11 | 27 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-27.000MHZ-B7G-T | Abracon | ABM11 | 27 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-27.000MHZ-D2X-T3 | Abracon | ABM11 | 27 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-27.000MHZ-D7X-T | Abracon | ABM11 | 27 MHz | ±20ppm | ±15ppm | 10 pF |
| ABM11-27.120MHZ-9-B1U-T | Abracon | ABM11 | 27.12 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-27.120MHZ-B1U-T | Abracon | ABM11 | 27.12 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-28.63636MHZ-B7G-T | Abracon | ABM11 | 28.63636 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-28.63636MHZ-D2X-T3 | Abracon | ABM11 | 28.63636 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-30.000MHZ-B1U-T | Abracon | ABM11 | 30 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-30.000MHZ-B1U-T3 | Abracon | ABM11 | 30 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-30.000MHZ-B7G-T | Abracon | ABM11 | 30 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-30.000MHZ-D2X-T | Abracon | ABM11 | 30 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-30.000MHZ-D2X-T3 | Abracon | ABM11 | 30 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-32.000MHZ-8-7G-T | Abracon | ABM11 | 32 MHz | ±15ppm | ±15ppm | 8 pF |
| ABM11-32.000MHZ-9-B1U-T | Abracon | ABM11 | 32 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-32.000MHZ-B1U-T | Abracon | ABM11 | 32 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-32.000MHZ-B7G-T | Abracon | ABM11 | 32 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-32.000MHZ-D2X-T3 | Abracon | ABM11 | 32 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-36.000MHZ-B7G-T | Abracon | ABM11 | 36 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-36.000MHZ-D2X-T3 | Abracon | ABM11 | 36 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-38.400MHZ-12-B1U-T | Abracon | ABM11 | 38.4 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM11-38.400MHZ-18-BY-T3 | Abracon | ABM11 | 38.4 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM11-38.400MHZ-9-B1U-T | Abracon | ABM11 | 38.4 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-38.400MHZ-B1U-T | Abracon | ABM11 | 38.4 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-38.400MHZ-B7G-T | Abracon | ABM11 | 38.4 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-38.400MHZ-D2X-T3 | Abracon | ABM11 | 38.4 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-38.400MHZ-D7Y-T | Abracon | ABM11 | 38.4 MHz | ±30ppm | ±15ppm | 10 pF |
| ABM11-40.000MHZ-12-B1U-T3 | Abracon | ABM11 | 40 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM11-40.000MHZ-9-B1U-T3 | Abracon | ABM11 | 40 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM11-40.000MHZ-B1U-T3 | Abracon | ABM11 | 40 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM11-40.000MHZ-B7G-T | Abracon | ABM11 | 40 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-40.000MHZ-D2X-T3 | Abracon | ABM11 | 40 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-44.000MHZ-B7G-T | Abracon | ABM11 | 44 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-44.000MHZ-D2X-T3 | Abracon | ABM11 | 44 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-48.000MHZ-B7G-T | Abracon | ABM11 | 48 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM11-48.000MHZ-D2X-T3 | Abracon | ABM11 | 48 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM11-48.000MHZ-D7X-T | Abracon | ABM11 | 48 MHz | ±20ppm | ±15ppm | 10 pF |
