規格型號：1675327
頻率：25MHz
尺寸：11.1 × 4.83 × 4.3mm
PDF
產品描述：ATS250BSM-1E,49SMD封裝晶振,CTS計算機應用晶振,兼具高穩定性,易集成,抗干擾,低功耗等多重核心優勢.無論是商用計算機,工業控制主機還是服務器設備,均能提供持續精準的時鐘信號,助力提升系統運行效率,穩定性與使用壽命...

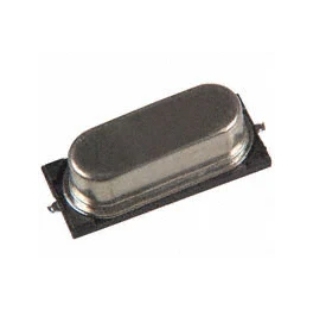

ATS250BSM-1E,49SMD封裝晶振,CTS計算機應用晶振
作為CTS計算機應用系列的核心產品,ATS250BSM-1E傳承品牌精密制造工藝,采用高品質晶體材質與優化電路設計,頻率偏差小,溫漂系數低,確保計算機系統時序同步的準確性.49SMD貼片封裝兼容主流SMT生產流程,與各類計算機芯片,接口電路兼容性極強,無需額外適配元件即可快速量產,為硬件廠商提供高效穩定的供應鏈支持.

ATS250BSM-1E,49SMD封裝晶振,CTS計算機應用晶振

原廠型號 Originalmodel：	ATS250BSM-1E	品牌brand：	CTS
品牌brand：	美國CTS石英晶體	高度PackageHeight：	4.3mm
型號名稱 Modelname：	ATS250BSM-1E	溫度OperatingTemperature	-40+85℃
Type系列：	MHZ Crystal	腳位Termination：	2-Pad
頻率 frequency：	25M	封裝類型PackageType：	49SMD
frequencytolerance頻率容差	30PP	最小包裝數MPQ：	-
Loadcapacitance 負載電容	18PF	Packaging 包裝	TapeandReel

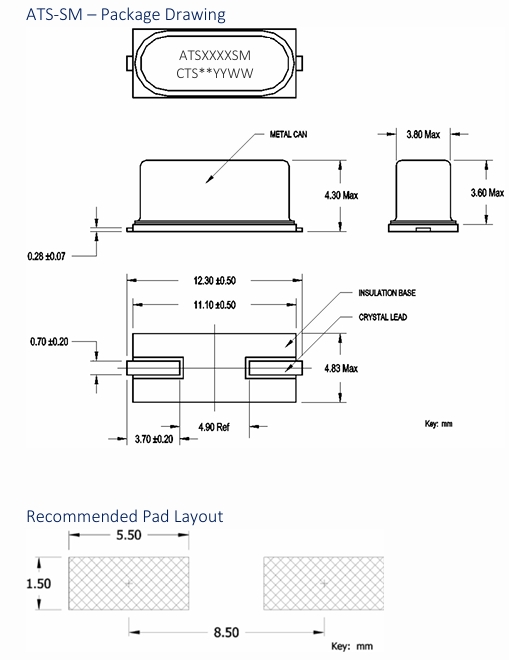

Size/Dimension尺寸	11.1 × 4.83 × 4.3mm	安裝方式 Installation：	Surfacemount

ATS250BSM-1E,49SMD封裝晶振,CTS計算機應用晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	25 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	27.12 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H01R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	8pF	60 Ohms
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	32 MHz	±10ppm	±10ppm	6pF	60 Ohms
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	25 MHz	±35ppm	±35ppm	6pF	100 Ohms
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	24 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	48 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	24 MHz	±30ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	27.12 MHz	±40ppm	±30ppm	10pF	80 Ohms
XRCGB25M000F3M18R0	Murata村田晶振	-	25 MHz	±40ppm	±30ppm	12pF	80 Ohms
XRCGB32M000F2P01R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	8pF	100 Ohms
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB25M000F2P02R0	Murata村田晶振	-	25 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	27.12 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	25 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB24M000F2P01R0	Murata村田晶振	-	24 MHz	±20ppm	±20ppm	8pF	150 Ohms
XRCGB27M120F3M13R0	Murata村田晶振	-	27.12 MHz	±40ppm	±30ppm	10pF	60 Ohms
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	8pF	70 Ohms
XRCGB32M000FBH50R0	Murata村田晶振	-	32 MHz	±10ppm	±15ppm	10pF	60 Ohms
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±20ppm	8pF	60 Ohms
XRCGB16M000FXN00R0	Murata村田晶振	-	16 MHz	±40ppm	±40ppm	6pF	200 Ohms
XRCGB32M000F1H02R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB32M000F1H19R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	6pF	50 Ohms
XRCGB40M000F5A00R0	Murata村田晶振	-	40 MHz	±65ppm	±50ppm	6pF	70 Ohms
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±30ppm	6pF	120 Ohms
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	27.12 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	25 MHz	±35ppm	±30ppm	8pF	100 Ohms
XRCGB48M000F5A00R0	Murata村田晶振	-	48 MHz	±65ppm	±50ppm	6pF	60 Ohms
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	25 MHz	±35ppm	±15ppm	6pF	100 Ohms
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	20 MHz	±100ppm	±100ppm	8pF	80 Ohms
XRCGB27M120F0L00R0	Murata村田晶振	-	27.12 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB32M000F0L00R0	Murata村田晶振	-	32 MHz	±50ppm	±100ppm	6pF	100 Ohms
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±25ppm	6pF	150 Ohms
XRCGB38M400F4M00R0	Murata村田晶振	-	38.4 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB50M000F4M00R0	Murata村田晶振	-	50 MHz	±40ppm	±45ppm	6pF	65 Ohms
XRCGB32M000F3M00R0	Murata村田晶振	-	32 MHz	±40ppm	±30ppm	6pF	100 Ohms
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P02R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	10pF	100 Ohms
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	30 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F2P02R0	Murata村田晶振	-	27.12 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB32M000F2P26R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	5pF	70 Ohms
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F3G00R0	Murata村田晶振	-	27.12 MHz	±50ppm	±30ppm	6pF	150 Ohms
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	16 MHz	±40ppm	±40ppm	8pF	200 Ohms
XRCGB27M600F2C00R0	Murata村田晶振	-	27.6 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCGB24M000F1H01R0	Murata村田晶振	-	24 MHz	±10ppm	±10ppm	8pF	80 Ohms
XRCGB26M000F1H02R0	Murata村田晶振	-	26 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB24M000F1H70R0	Murata村田晶振	-	24 MHz	±20ppm	±10ppm	6pF	80 Ohms
XRCGB32M000F1H83R0	Murata村田晶振	-	32 MHz	±15ppm	±10ppm	9pF	60 Ohms
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	27 MHz	±35ppm	±15ppm	6pF	80 Ohms
XRCGB26M000F3A00R0	Murata村田晶振	-	26 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	26 MHz	±35ppm	±15ppm	8pF	80 Ohms
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	20 MHz	±45ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±20ppm	8pF	120 Ohms
XRCGB27M120F3P00R0	Murata村田晶振	-	27.12 MHz	±20ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	26 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	32 MHz	±15ppm	±10ppm	9pF	40 Ohms
