規格型號：91383059
頻率：12.0MHz
尺寸：2520mm
PDF
產品描述：LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振,采用高品質晶體材料與精密封裝工藝,使用壽命長達100000小時以上,可適配需要長期連續運行的設備,如工業自動化生產線監控設備,智能電網遠程監測終端,大幅降低設備后期...

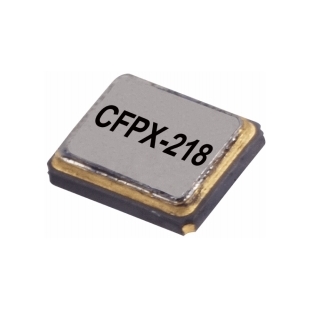

LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振
LFXTAL071952RL3K采用RL3K卷盤封裝,完美兼容SMT表面貼裝生產線的自動化高速貼片流程,能大幅減少人工操作,特別適合消費電子,物聯網設備等批量生產場景,如智能插座控制模塊,小型無線傳感器終端,在提供穩定時鐘信號的同時,保障量產產品的頻率一致性,顯著提升生產效率.可在-40℃~85℃的寬溫區間內穩定工作,即便應用于戶外環境監測設備,工業晶振高溫作業區的小型控制終端等復雜場景,也能始終保持精準的頻率輸出,為設備長期穩定運行筑牢時基根基,減少因環境變化導致的設備故障.

LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振

原廠型號 Originalmodel：	LFXTAL071952RL3K	品牌brand：	IQD晶振
品牌brand：	IQD石英晶體諧振器	ESR（等效串聯電阻）Resistance)	-
型號名稱 Modelname：	CFPX-218	溫度OperatingTemperature	-40°C to 85°C
Type系列：	MHz Crystal	腳位Termination：	4pad
頻率 frequency：	12.0MHz	封裝類型PackageType：	4-SMD
FrequencyStability頻率穩定度	±30ppm	高度PackageHeight：	0.60mm
frequencytolerance頻率容差	±20ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	10.00pF	包裝Packaging：	TapeandReel
Size/Dimension尺寸	2520mm	安裝方式MountingStyle：	SurfaceMount

LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振

LFXTAL081314Reel	IQXC-240	37.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL081316Reel	IQXC-240	38.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL072539Reel	IQXC-26	24.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL078691Cutt	IQXC-26	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081608Cutt	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081608Reel	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081609Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083890Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL052799Cutt	IQXC-26	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL066742Cutt	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL066742Reel	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069296Cutt	IQXC-26	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL070729Cutt	IQXC-26	26.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL081614Cutt	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081614Reel	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072541Cutt	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL072541Reel	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081610Cutt	IQXC-26	27.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072302Cutt	IQXC-26	30.0MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081612Cutt	IQXC-26	30.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL056523Cutt	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL056523Reel	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL069526Cutt	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069526Reel	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL079322Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL079322Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL081613Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083149Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL072304Cutt	IQXC-26	37.4MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081616Cutt	IQXC-26	37.4MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL063312Cutt	IQXC-26	40.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL069527Cutt	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069527Reel	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081619Cutt	IQXC-26	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069528Cutt	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069528Reel	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081620Cutt	IQXC-26	48.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
