規格型號：70891625
頻率：50M
尺寸：7050mm
PDF
產品描述：X1G004481001200,EPSON低功耗晶振,SG7050CAN晶振封裝設計緊湊,節省PCB空間,便于設備小型化集成,還具備良好的耐溫性和抗?jié)裥?適應不同環境下的應用需求,是智能終端,無線傳感網絡,可穿戴設備等低功耗產品的核心時鐘部件...

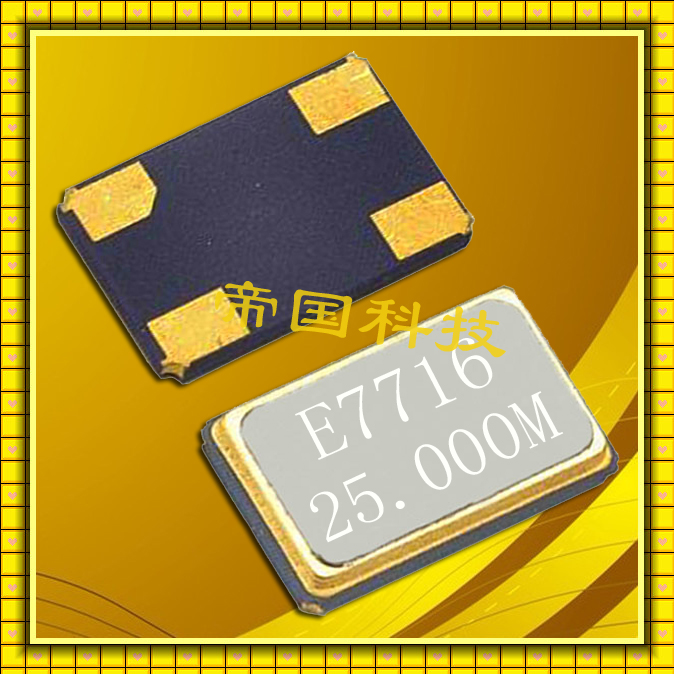

X1G004481001200,EPSON低功耗晶振,SG7050CAN晶振

SG7050CAN高頻控制晶振封裝的X1G004481001200晶振,是EPSON針對低功耗應用場景量身打造的石英晶振產品.該晶振不僅擁有超低功耗優勢,還具備高精度頻率特性,頻率偏差控制在極小范圍,滿足高精度電子設備的時鐘需求.產品引腳定義規范,焊接兼容性強,安裝便捷,同時具備優異的溫度特性,工作溫度范圍覆蓋寬溫區間,適用于智能手機,平板電腦,無線通信模塊等各類便攜式電子設備.

X1G004481001200,EPSON低功耗晶振,SG7050CAN晶振

原廠型號 Originalmodel：	X1G004481001200	品牌brand：	Epson
Manufacturer品牌	Epson藍牙設備晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	SG7050CAN	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	1.3mm
Frequency頻率	50M	Termination 腳位	4-pad
輸出方式 Output：	CMOS輸出	PackageType 封裝類型	4-smd
Voltage-Supply電壓	1.8-3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	50PP	安裝方式 Installation：	Surfacemount

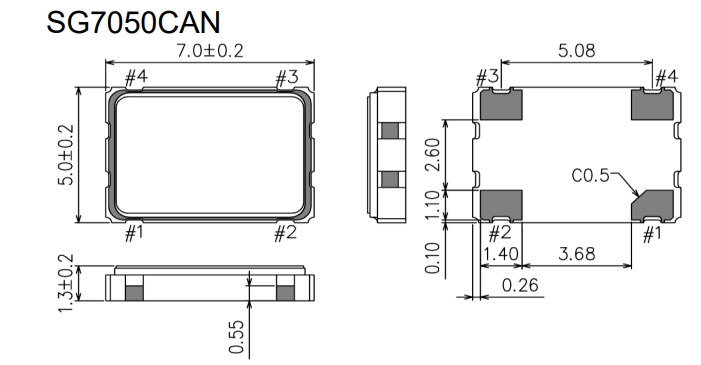

Size/Dimension尺寸	7050mm	最小包裝數MPQ：	1000

X1G004481001200,EPSON低功耗晶振,SG7050CAN晶振

SG-8018CG 32.5140M-TJHSA0	EPSON	SG-8018	XO	32.514 MHz	CMOS
SG-8018CG 12.7000M-TJHPA0	EPSON	SG-8018	XO	12.7 MHz	CMOS
SG-8018CG 133.302860M-TJHPA0	EPSON	SG-8018	XO	133.30286 MHz	CMOS
SG-8018CG 26.296750M-TJHPA0	EPSON	SG-8018	XO	26.29675 MHz	CMOS
SG-8018CG 45.4545M-TJHPA0	EPSON	SG-8018	XO	45.4545 MHz	CMOS
SG-8018CG 31.3500M-TJHSA0	EPSON	SG-8018	XO	31.35 MHz	CMOS
SG-8018CG 12.2727M-TJHPA0	EPSON	SG-8018	XO	12.2727 MHz	CMOS
SG-8018CG 12.8800M-TJHSA0	EPSON	SG-8018	XO	12.88 MHz	CMOS
SG-8018CG 132.8130M-TJHPA0	EPSON	SG-8018	XO	132.813 MHz	CMOS
SG-8018CG 4.096250M-TJHSA0	EPSON	SG-8018	XO	4.09625 MHz	CMOS
SG-8018CG 97.2000M-TJHSA0	EPSON	SG-8018	XO	97.2 MHz	CMOS
SG-8018CG 0.7990M-TJHSA0	EPSON	SG-8018	XO	799 kHz	CMOS
SG-8018CG 32.1060M-TJHPA0	EPSON	SG-8018	XO	32.106 MHz	CMOS
SG-8018CG 23.0140M-TJHSA0	EPSON	SG-8018	XO	23.014 MHz	CMOS
SG-8018CG 16.3840M-TJHPA0	EPSON	SG-8018	XO	16.384 MHz	CMOS
SG-8018CG 50.1100M-TJHSA0	EPSON	SG-8018	XO	50.11 MHz	CMOS
SG-8018CG 18.0224M-TJHPA0	EPSON	SG-8018	XO	18.0224 MHz	CMOS
SG-8018CG 16.3860M-TJHSA0	EPSON	SG-8018	XO	16.386 MHz	CMOS
SG-8018CG 53.0000M-TJHSA0	EPSON	SG-8018	XO	53 MHz	CMOS
SG-8018CG 56.6500M-TJHSA0	EPSON	SG-8018	XO	56.65 MHz	CMOS
SG-8018CG 13.553750M-TJHSA0	EPSON	SG-8018	XO	13.55375 MHz	CMOS
SG-8018CG 45.0000M-TJHPA0	EPSON	SG-8018	XO	45 MHz	CMOS
SG-8018CG 100.0100M-TJHPA0	EPSON	SG-8018	XO	100.01 MHz	CMOS
SG-8018CG 93.7500M-TJHSA0	EPSON	SG-8018	XO	93.75 MHz	CMOS
SG-8018CG 19.2840M-TJHPA0	EPSON	SG-8018	XO	19.284 MHz	CMOS
SG-8018CG 139.2460M-TJHSA0	EPSON	SG-8018	XO	139.246 MHz	CMOS
SG-8018CG 100.0500M-TJHPA0	EPSON	SG-8018	XO	100.05 MHz	CMOS
SG-8018CG 19.4444M-TJHPA0	EPSON	SG-8018	XO	19.4444 MHz	CMOS
SG-8018CG 26.8300M-TJHSA0	EPSON	SG-8018	XO	26.83 MHz	CMOS
SG-8018CG 32.7500M-TJHSA0	EPSON	SG-8018	XO	32.75 MHz	CMOS
SG-8018CG 135.2650M-TJHPA0	EPSON	SG-8018	XO	135.265 MHz	CMOS
SG-8018CG 27.000625M-TJHSA0	EPSON	SG-8018	XO	27.000625 MHz	CMOS
SG-8018CG 138.7000M-TJHPA0	EPSON	SG-8018	XO	138.7 MHz	CMOS
SG-8018CG 32.2500M-TJHSA0	EPSON	SG-8018	XO	32.25 MHz	CMOS
SG-8018CG 137.5000M-TJHPA0	EPSON	SG-8018	XO	137.5 MHz	CMOS
SG-8018CG 0.9000M-TJHSA0	EPSON	SG-8018	XO	900 kHz	CMOS
SG-8018CG 56.4480M-TJHSA0	EPSON	SG-8018	XO	56.448 MHz	CMOS
SG-8018CG 26.9900M-TJHSA0	EPSON	SG-8018	XO	26.99 MHz	CMOS
SG-8018CG 120.9600M-TJHSA0	EPSON	SG-8018	XO	120.96 MHz	CMOS
SG-8018CG 14.089190M-TJHSA0	EPSON	SG-8018	XO	14.08919 MHz	CMOS
SG-8018CG 32.507936M-TJHSA0	EPSON	SG-8018	XO	32.507936 MHz	CMOS
SG-8018CG 100.0400M-TJHPA0	EPSON	SG-8018	XO	100.04 MHz	CMOS
SG-8018CG 19.6870M-TJHPA0	EPSON	SG-8018	XO	19.687 MHz	CMOS
SG-8018CG 44.5450M-TJHPA0	EPSON	SG-8018	XO	44.545 MHz	CMOS
SG-8018CG 4.9150M-TJHSA0	EPSON	SG-8018	XO	4.915 MHz	CMOS
SG-8018CG 4.3000M-TJHSA0	EPSON	SG-8018	XO	4.3 MHz	CMOS
SG-8018CG 32.5140M-TJHPA0	EPSON	SG-8018	XO	32.514 MHz	CMOS
SG-8018CG 55.5555M-TJHSA0	EPSON	SG-8018	XO	55.5555 MHz	CMOS
SG-8018CG 50.0080M-TJHPA0	EPSON	SG-8018	XO	50.008 MHz	CMOS
SG-8018CG 23.8040M-TJHSA0	EPSON	SG-8018	XO	23.804 MHz	CMOS
SG-8018CG 121.0000M-TJHPA0	EPSON	SG-8018	XO	121 MHz	CMOS
SG-8018CG 27.0016M-TJHPA0	EPSON	SG-8018	XO	27.0016 MHz	CMOS
SG-8018CG 148.2200M-TJHPA0	EPSON	SG-8018	XO	148.22 MHz	CMOS
SG-8018CG 99.9300M-TJHSA0	EPSON	SG-8018	XO	99.93 MHz	CMOS
SG-8018CG 14.0500M-TJHSA0	EPSON	SG-8018	XO	14.05 MHz	CMOS
SG-8018CG 98.7650M-TJHSA0	EPSON	SG-8018	XO	98.765 MHz	CMOS
SG-8018CG 46.495960M-TJHPA0	EPSON	SG-8018	XO	46.49596 MHz	CMOS
SG-8018CG 50.0025M-TJHSA0	EPSON	SG-8018	XO	50.0025 MHz	CMOS
SG-8018CG 64.5160M-TJHSA0	EPSON	SG-8018	XO	64.516 MHz	CMOS
SG-8018CG 0.7840M-TJHPA0	EPSON	SG-8018	XO	784 kHz	CMOS
