規格型號：10084064
頻率：25MHz
尺寸：3225mm
PDF
產品描述：X3S025000DC1H-HW,HELE臺灣加高晶振,HSX321S石英晶振,兼具性能與性價比的頻率控制解決方案.產品輸出頻率精準穩定,功耗低,響應速度快,能快速適配電路啟動需求,同時具備良好的抗靜電能力與環境適應性.

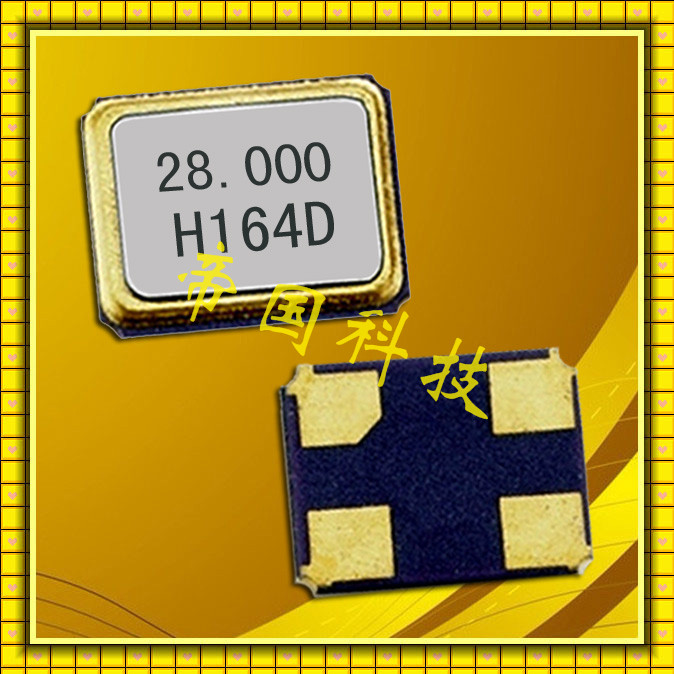

X3S025000DC1H-HW,HELE臺灣加高晶振,HSX321S石英晶振

高品質臺灣加高晶振X3S025000DC1H-HW晶振,依托HSX321S石英晶振核心技術,聚焦高頻應用場景的精準頻率控制需求.產品采用高品質石英晶體材質,頻率公差嚴控在極小范圍,溫漂特性優異,在-40℃~85℃寬溫環境下仍能保持穩定輸出.加高封裝設計不僅提升了產品的機械強度,更便于自動化貼裝生產,適配現代電子制造業的高效量產需求,是物聯網,汽車電子,醫療設備等高端領域的優選頻率器件.

X3S025000DC1H-HW,HELE臺灣加高晶振,HSX321S石英晶振

原廠型號 Originalmodel：	X3S025000DC1H-HW	品牌brand：	H.ELE
品牌brand：	H.ELE	高度PackageHeight：	0.7mm
型號名稱 Modelname：	HSX321S無源晶振	溫度OperatingTemperature	-20+70℃
Type系列：	MHz Crystal	腳位Termination：	4-Pad
頻率 frequency：	25M	封裝類型PackageType：	4-smd
frequencytolerance頻率容差	20PP	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	12PF	Packaging 包裝	TapeandReel

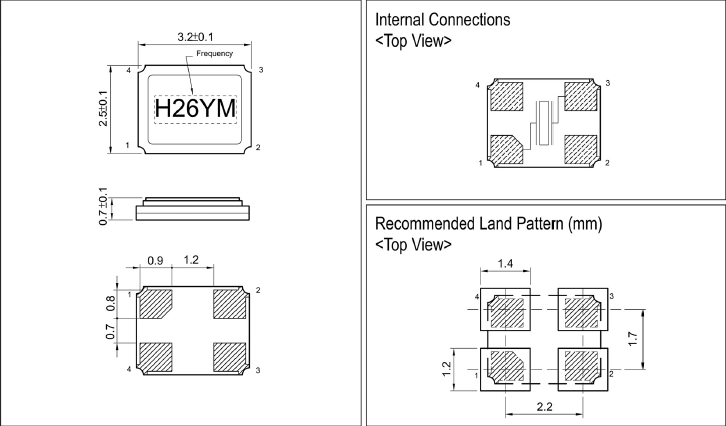

Size/Dimension尺寸	3225mm	安裝方式 Installation：	Surfacemount

X3S025000DC1H-HW,HELE臺灣加高晶振,HSX321S石英晶振

X3S025000DC1H-HW,HELE臺灣加高晶振,HSX321S石英晶振

X3S027000BA1H-U	HELE加高晶振	HSX321S	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF
X3S024000B91H-HS	HELE加高晶振	HSX321S	MHz Crystal	24 MHz	±15ppm	±10ppm	9pF
X3S027120BA1H-X	HELE加高晶振	HSX321S	MHz Crystal	27.12 MHz	±20ppm	±10ppm	10pF
X3S032000BC1HA-CHPZ	HELE加高晶振	HSX321S	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
X3S016000DI1H-HW	HELE加高晶振	HSX321S	MHz Crystal	16 MHz	±20ppm	±20ppm	18pF
X3S012000FI1H-HV	HELE加高晶振	HSX321S	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
X3S025000D81H-HU	HELE加高晶振	HSX321S	MHz Crystal	25 MHz	±20ppm	±20ppm	8pF
X3S026000B91H-NZ	HELE加高晶振	HSX321S	MHz Crystal	26 MHz	±10ppm	±10ppm	9pF
X2B026000M81H-HS	HELE加高晶振	HSX221SA	MHz Crystal	26 MHz	±15ppm	±7ppm	8pF
X2B016000BA1H-U	HELE加高晶振	HSX221SA	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF
X2B012000BC1H-U	HELE加高晶振	HSX221SA	MHz Crystal	12 MHz	±20ppm	±10ppm	12pF
X2B040000BC1H-DHZ	HELE加高晶振	HSX221SA	MHz Crystal	40 MHz	±10ppm	±10ppm	12pF
X2C025000DZ1H-U	HELE加高晶振	HSX211S	MHz Crystal	25 MHz	±20ppm	±20ppm	6pF
X2C032000BA1H-HZ	HELE加高晶振	HSX211S	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
X2C024000DZ1H-HU	HELE加高晶振	HSX211S	MHz Crystal	24 MHz	±20ppm	±20ppm	6pF
X2C016000B81H-R	HELE加高晶振	HSX211S	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF
X2C026000BC1H-Z	HELE加高晶振	HSX211S	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
X1C032000B81H-HR	HELE加高晶振	HSX111S	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
X1C024000B81H-HV	HELE加高晶振	HSX111S	MHz Crystal	24 MHz	±30ppm	±10ppm	8pF
X2C048000L71HH-CEHZ	HELE加高晶振	HSX211S	MHz Crystal	48 MHz	±14ppm	±8ppm	11.1pF
X2R026000BZ1HAZ-DHPZ	HELE加高晶振	HSX221SR	MHz Crystal	26 MHz	-	±10ppm	7pF
X1R038400B81HA-CEHPZ	HELE加高晶振	HSX111SR	MHz Crystal	38.4 MHz	±10ppm	-	8pF
X2U026000B81HBZ-DHPZ	HELE加高晶振	HSX211SR	MHz Crystal	26 MHz	-	±10ppm	8pF
X2R026000B91HZ-DEHPZ	HELE加高晶振	HSX221SR	MHz Crystal	26 MHz	±10ppm	±10ppm	9pF
X2R019200BZ1H-CHZ	HELE加高晶振	HSX221SR	MHz Crystal	19.2 MHz	-	±10ppm	7pF
X2U019200BZ1H-CEHQZ	HELE加高晶振	HSX211SR	MHz Crystal	19.2 MHz	-	±10ppm	7pF
X2U038400B81H-EPQZ	HELE加高晶振	HSX211SR	MHz Crystal	38.4 MHz	-	±10ppm	8pF
X1R052000B81HZ-DEHPZ	HELE加高晶振	HSX111SR	MHz Crystal	52 MHz	±10ppm	±10ppm	8pF
X12A040000BZ1H-HZ	HELE加高晶振	HSX1210A	MHz Crystal	40 MHz	±10ppm	±12ppm	6pF
X12A032000B81H-HZ	HELE加高晶振	HSX1210A	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
SSW048000I3CHE-T	HELE加高晶振	HSO321S	XO (Standard)	48 MHz	3.3V	±50ppm	-
SSW050000I3CHE-T	HELE加高晶振	HSO321S	XO (Standard)	50 MHz	3.3V	±50ppm	-
SSW008000I3CHE-T	HELE加高晶振	HSO321S	XO (Standard)	8 MHz	3.3V	±50ppm	-
SSW024576F3CHC-T	HELE加高晶振	HSO321S	XO (Standard)	24.576 MHz	3.3V	±30ppm	-
SSW010000I3CHE-T	HELE加高晶振	HSO321S	XO (Standard)	10 MHz	3.3V	±50ppm	-
SSW025000I3CHE-ST7R2	HELE加高晶振	HSO321S	XO (Standard)	25 MHz	3.3V	±50ppm	-
S2H048000F3CHC-T	HELE加高晶振	HSO221S	XO (Standard)	48 MHz	3.3V	±30ppm	-
TC2S026000DCCHE-T	HELE加高晶振	HSB221S	TCXO	26 MHz	2.8V	±500ppb	-
X3S026000B91H-NZ	HELE加高晶振	HSX321S	MHz Crystal	26 MHz	±10ppm	±10ppm	9pF
X2B026000M81H-HS	HELE加高晶振	HSX221SA	MHz Crystal	26 MHz	±15ppm	±7ppm	8pF
X2B016000BA1H-U	HELE加高晶振	HSX221SA	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF
X2B012000BC1H-U	HELE加高晶振	HSX221SA	MHz Crystal	12 MHz	±20ppm	±10ppm	12pF
X2B040000BC1H-DHZ	HELE加高晶振	HSX221SA	MHz Crystal	40 MHz	±10ppm	±10ppm	12pF
X2C025000DZ1H-U	HELE加高晶振	HSX211S	MHz Crystal	25 MHz	±20ppm	±20ppm	6pF
X2C032000BA1H-HZ	HELE加高晶振	HSX211S	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
X2C024000DZ1H-HU	HELE加高晶振	HSX211S	MHz Crystal	24 MHz	±20ppm	±20ppm	6pF
X2C016000B81H-R	HELE加高晶振	HSX211S	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF
X2C026000BC1H-Z	HELE加高晶振	HSX211S	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
X1C032000B81H-HR	HELE加高晶振	HSX111S	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
X1C024000B81H-HV	HELE加高晶振	HSX111S	MHz Crystal	24 MHz	±30ppm	±10ppm	8pF
X2C048000L71HH-CEHZ	HELE加高晶振	HSX211S	MHz Crystal	48 MHz	±14ppm	±8ppm	11.1pF
X2R026000BZ1HAZ-DHPZ	HELE加高晶振	HSX221SR	MHz Crystal	26 MHz	-	±10ppm	7pF
X1R038400B81HA-CEHPZ	HELE加高晶振	HSX111SR	MHz Crystal	38.4 MHz	±10ppm	-	8pF
X2U026000B81HBZ-DHPZ	HELE加高晶振	HSX211SR	MHz Crystal	26 MHz	-	±10ppm	8pF
X3S027000BA1H-U	HELE加高晶振	HSX321S	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF
X3S024000B91H-HS	HELE加高晶振	HSX321S	MHz Crystal	24 MHz	±15ppm	±10ppm	9pF
X3S027120BA1H-X	HELE加高晶振	HSX321S	MHz Crystal	27.12 MHz	±20ppm	±10ppm	10pF
X3S032000BC1HA-CHPZ	HELE加高晶振	HSX321S	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
X3S016000DI1H-HW	HELE加高晶振	HSX321S	MHz Crystal	16 MHz	±20ppm	±20ppm	18pF
X3S012000FI1H-HV	HELE加高晶振	HSX321S	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
